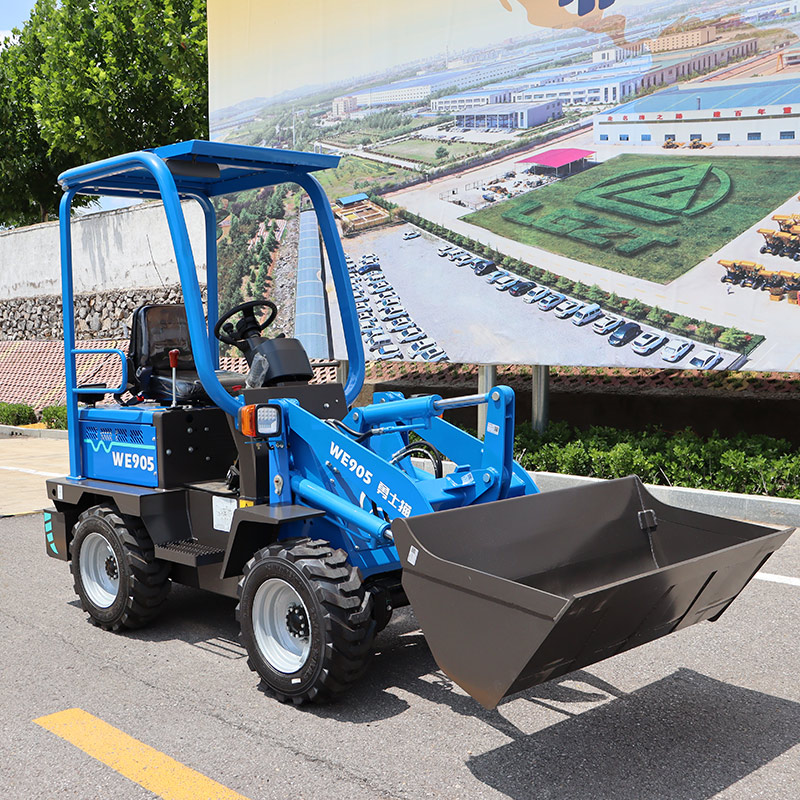

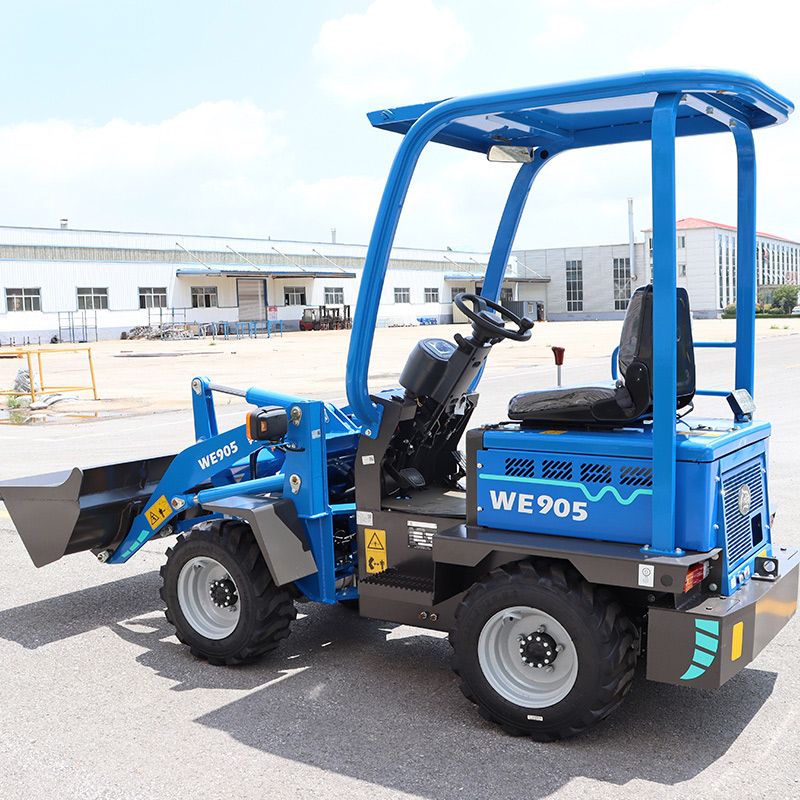

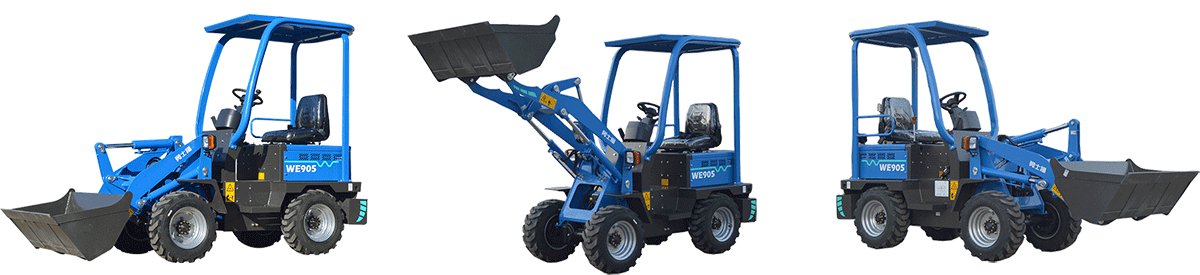

0.5T Electric Front Loader
Model: WE905
Eco-friendly and zero emissions– Fully electric drive with no pollution and low noise, meeting the requirements of environmental standards and green policies.
High efficiency and power– The all-wheel drive system with two electric motors provides strong traction, fast acceleration and low energy consumption.
Smart and safe control– Intelligent protection system, CAN-bus based display for real-time parameter monitoring.
Long battery life and fast charging– 180Ah lithium battery with battery management system (BMS), fully charged in 2.5 hours.

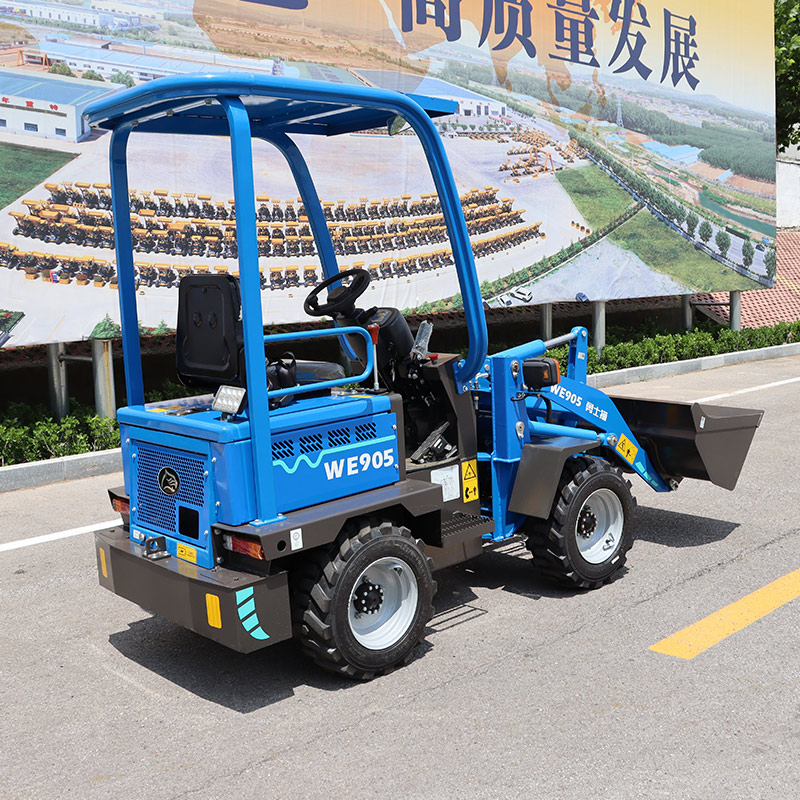

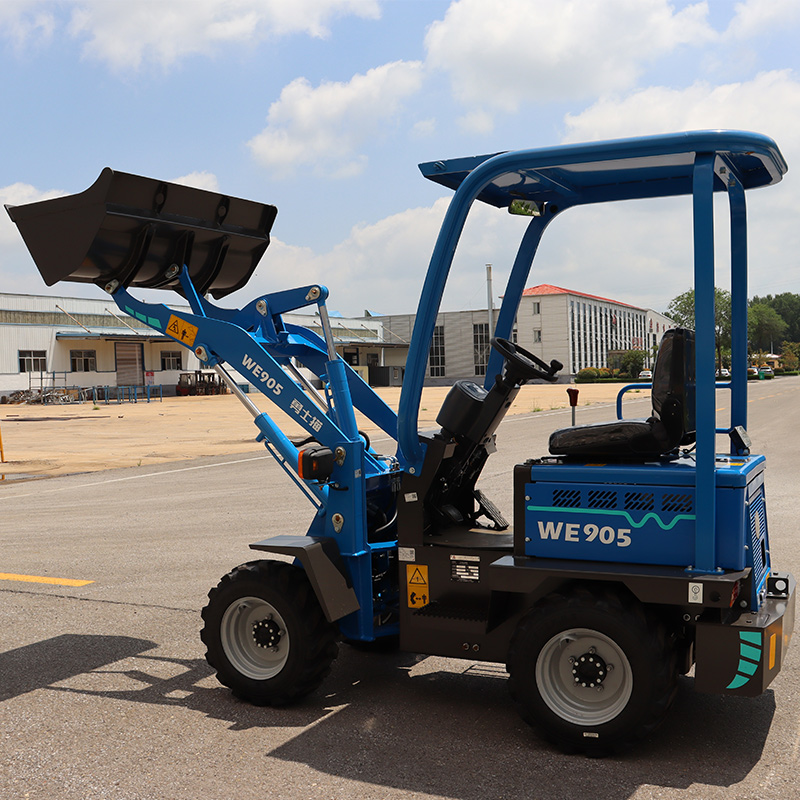

Electric Front Loader We905 - 0.5 tons
The WE905 model is a powerful and environmentally friendly electric frontal loader with a lifting capacity of 0.5 tons, created for effective and reliable operation. Thanks to a fully electric drive, it works silently and without harmful emissions, ensuring compliance with environmental standards and reducing operational costs. The all -wheel drive system with two engines provides strong traction, fast dynamics and low energy consumption - ideal for performing various tasks with ease.
This loader is also equipped with intellectual functions, such as the lithium battery with a capacity of 180 A · h with the BMS advanced system and the LCD display to display data in real time. Electro -hydraulic control, low -noise gear pumps and energy -saving technologies make the WE905 model with a reliable choice for companies seeking to increase productivity and reduce the cost of maintenance and fuel.

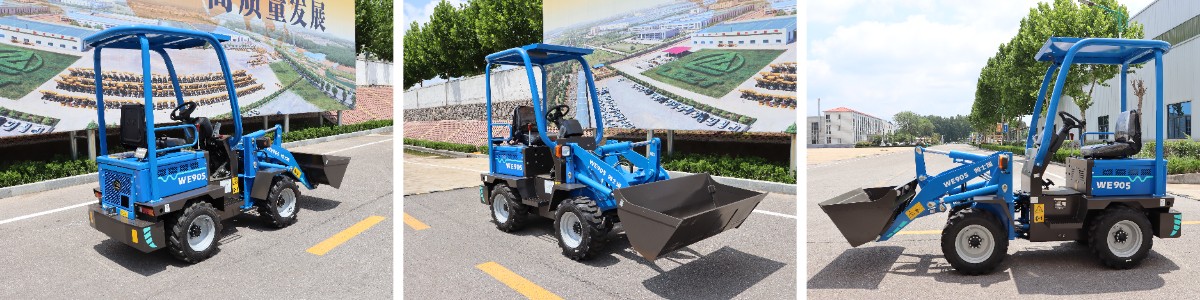

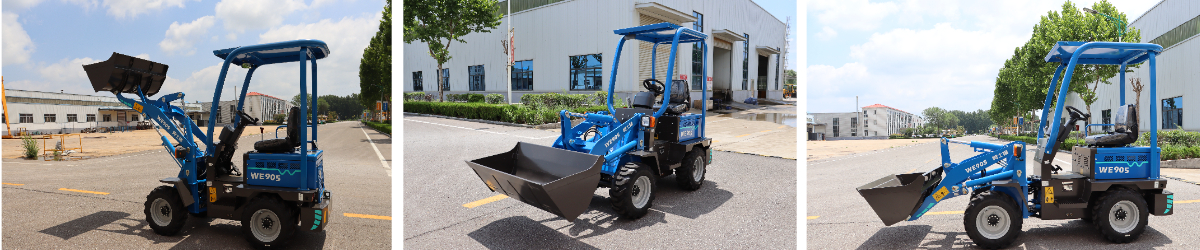

Display product details
Detailed description of product components
Product advantages:
No.1: New model with full electric drive - low noise, zero emission, energy saving and environmental protection. Low vibration, easy operation, low operation and maintenance costs. Comply with the state policy on energy conservation and emission reduction.
No.2: The proven all-wheel drive system with two electric motors provides high transmission efficiency, high traction force, fast acceleration dynamics, low energy consumption and high productivity. Suitable for various working conditions.
No.3: Professional electronic control system with multi-level intelligent protection. Sophisticated control system, safe, stable and reliable in operation.
No.4: The hydraulic system is equipped with low-noise gear pumps, load-sensing steering, priority valves and multiple distributors with operating switches. The coordinated operation of all machine components ensures easy operation, flexibility, low noise and high energy efficiency.

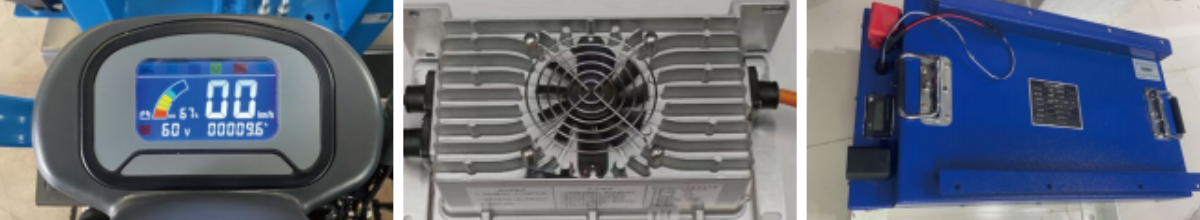

No.5: Equipped with a high-performance 180Ah lithium battery with advanced battery management system (BMS). The battery has high energy density, stable output and excellent running time.
#6: CAN Bus LCD Panel - Full color display shows accurate data in real time.
No.7: Articulated frame, full hydraulic steering, compact structure, low center of gravity. High stability and maneuverability, suitable for various working conditions.
No.8: Equipped with two 30A intelligent high-power chargers. The full charging time is only 2.5 hours, saving time and improving work efficiency.
#9: Equipped with LED headlights for better illumination and reliability in the dark.
#10: Quick-change attachments. Available with a 4-in-1 bucket, log grab, pallet forks and more to suit a wide range of applications.

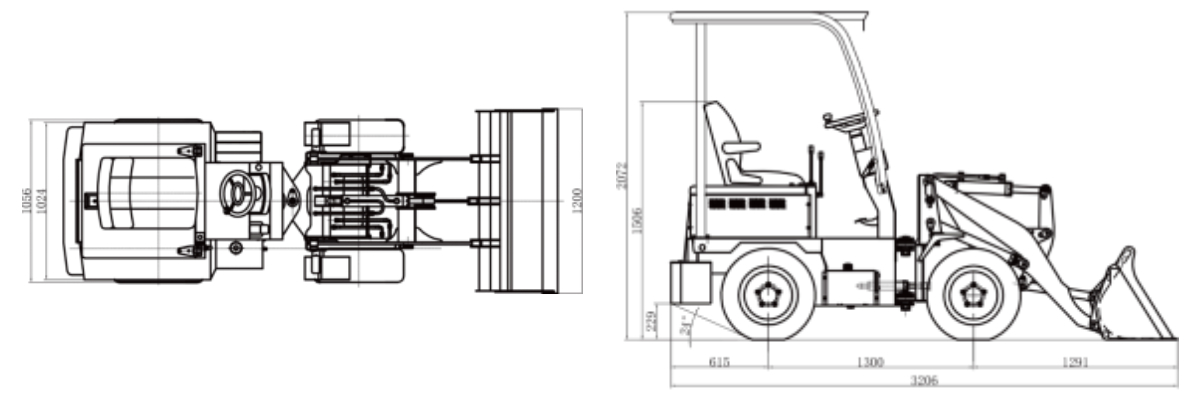

Warrant Electric Wheel Loader Specifications
| Parameter | Meaning | Unit of measure | Parameter | Qty | Meaning | Unit of measure |
|---|---|---|---|---|---|---|
| Nominal lifting capacity | 500 | kg | Battery type | 1 | HWZT 62.9-180L11 | |
| Bucket volume | Three-component lithium-polymer | |||||
| - Horizontal loading | 0.18 | m³ | Rated voltage | 62.9 | IN | |
| - Vertical loading | 0.25 | m³ | Nominal capacity | 180 | A·h | |
| Working weight | 1200 | kg | Battery life | 6.5 | h | |
| Unloading height | 1850 | mm | Traction motor power | 2 | 3x2 | kW |
| Unloading distance | 573 | mm | 1 | 3 | kW | |
| Opening hours | ||||||
| - Rise | 6.4 | with | Name | 2 | Intelligent Fast Charging (Built-in Charger) | |
| - Lowering | 3.6 | with | Nominal input power | 220 | IN | |
| Max. speed | AC input voltage | 2.4x2 | kW | |||
| - Forward | 16 | km/h | DC output | 71.4 | IN | |
| - Back | 16 | km/h | Max. output current | 30x2 | A | |
| Max. traction force (by gear) | ||||||
| - Forward | 8.5 | kN |

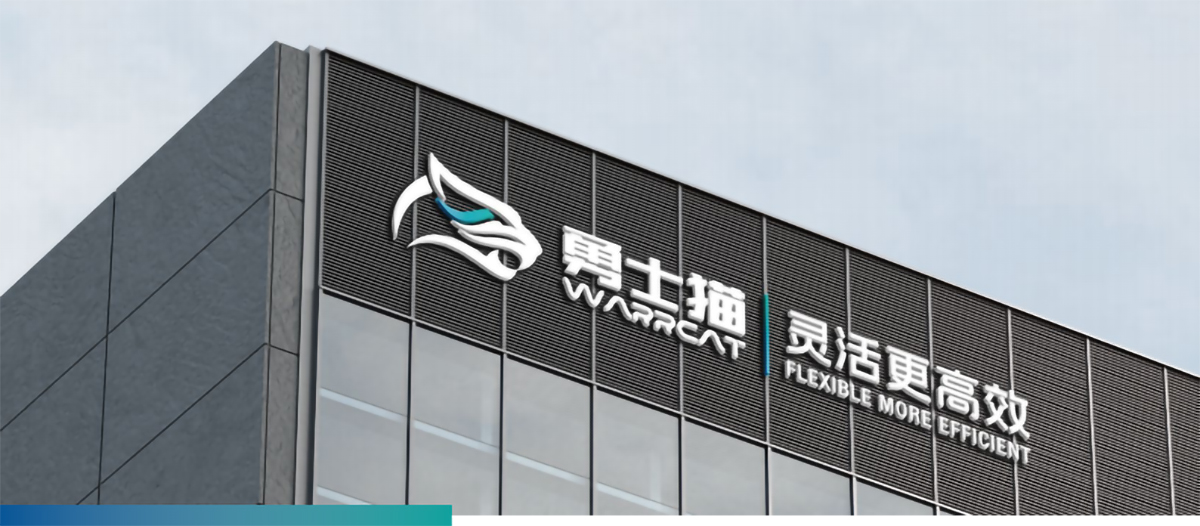

Company strength:

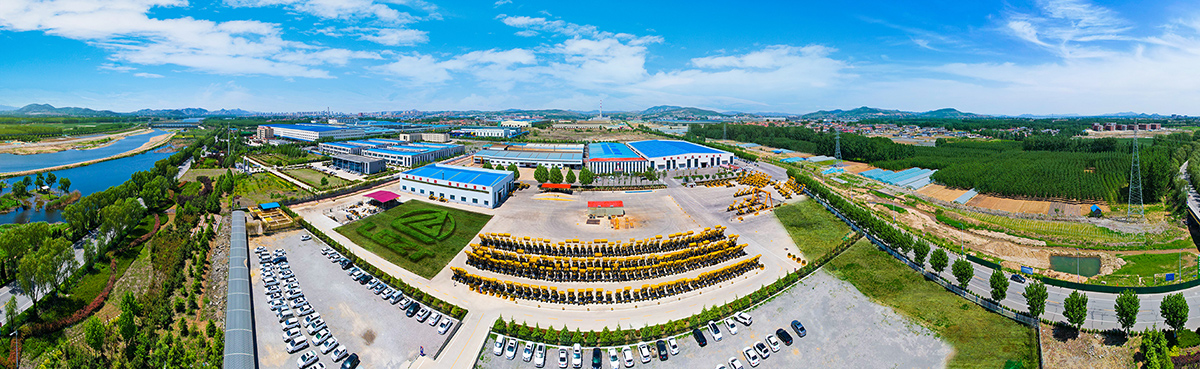

Founded in 2013, Shandong Huawei Zot Machinery Co., Ltd. (LGZT) specializes in the development, production, sales and service of high-efficiency small construction equipment. The company has won a number of national awards including "Small Giant Enterprise", "National High-tech Enterprise", "Shandong Province Quality Brand" and "Provincial Industry Winner".
LGZT produces six main product series: ZL, LG, W, WE, export-oriented series and off-road forklifts, the total number of models exceeds 1000. The products are exported to more than 20 countries and regions including Russia, Australia and Vietnam.

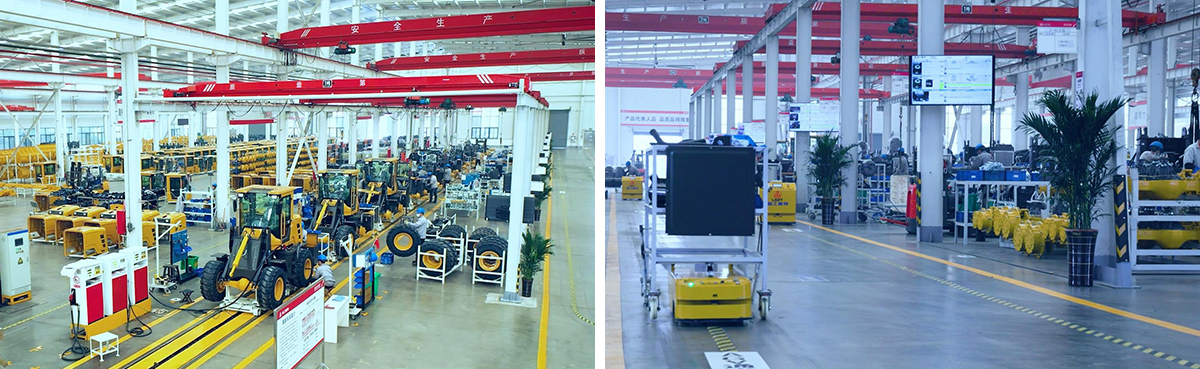

The company was the first in the country to apply automotive technologies in the production of small construction equipment. The production is equipped with modern powder coating and shot blasting lines with electrophoresis, which made it possible to abandon traditional paints and varnishes and switch to environmentally friendly technologies, completely eliminating the problem of VOC emissions, as well as the problem of rust and fading of equipment.
